N-TYPE BIFACIAL DUAL GLASS
720W Module
66HL5-BDV
from $89.5 / pcs
In stock. Exact quantity on request.
Location: Mersin, Turkey.
Origin: China.
Electrical (STC)
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 720 Wp |
| Vmp | 40.89 V |
| Imp | 17.61 A |
| Voc | 49.04 V |
| Isc | 18.67 A |
| Module Efficiency | 23.18 % |
| Power Tolerance | 0 ~ +3 % |
Mechanical
| Parameter | Value |
|---|---|
| Cell Type | N-type Mono-crystalline |
| No. of Cells | 132 (66×2) |
| Dimensions | 2384 × 1303 × 33 mm |
| Weight | 37.5 kg |
| Front / Back Glass | 2.0 mm AR / 2.0 mm heat strengthened |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 |
| Output Cables | 4.0 mm², +400 / -200 mm |
Application
| Parameter | Value |
|---|---|
| Operating Temperature | -40 °C ~ +70 °C |
| Maximum System Voltage | 1500 VDC (IEC) |
| Max Series Fuse | 35 A |
| Bifacial Factor | φPmax 80 ± 5 % |
| Temp. Coeff. Pmax | -0.29 %/°C |
Packaging
| Parameter | Value |
|---|---|
| Pallet | 33 pcs |
| 40'HQ Container | 594 pcs |
Warranty & Performance
| Parameter | Value |
|---|---|
| Product Warranty | 12 years |
| Linear Power Warranty | 30 years |
| First Year Degradation | 1 % |
| Annual Degradation (years 2–30) | 0.40 % |
| Mechanical Load (front) | 5400 Pa |
| Mechanical Load (rear) | 2400 Pa |

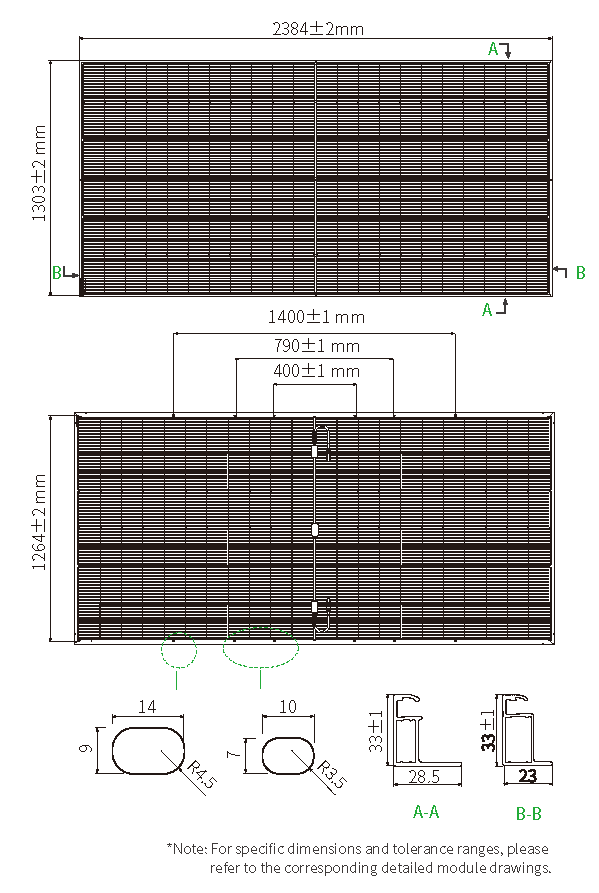

Engineering Drawings

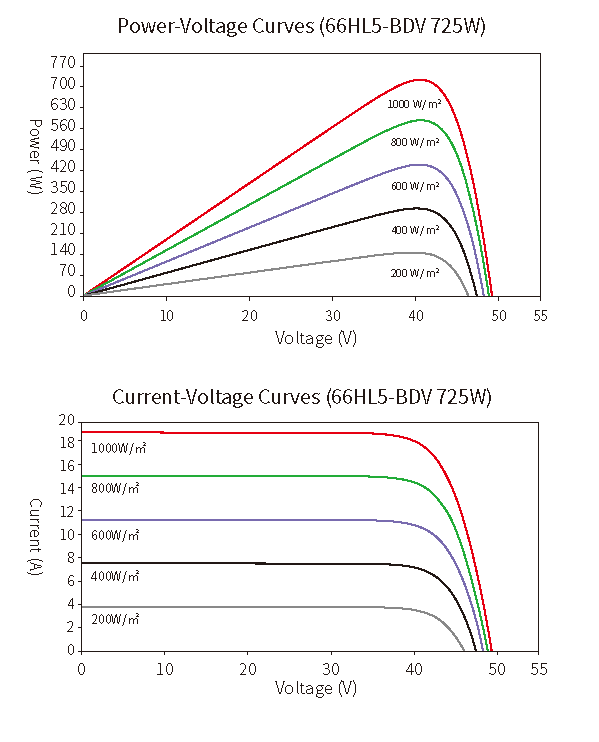

Electrical Performance
